Crown-Berkey

image 0

Main Filtration System

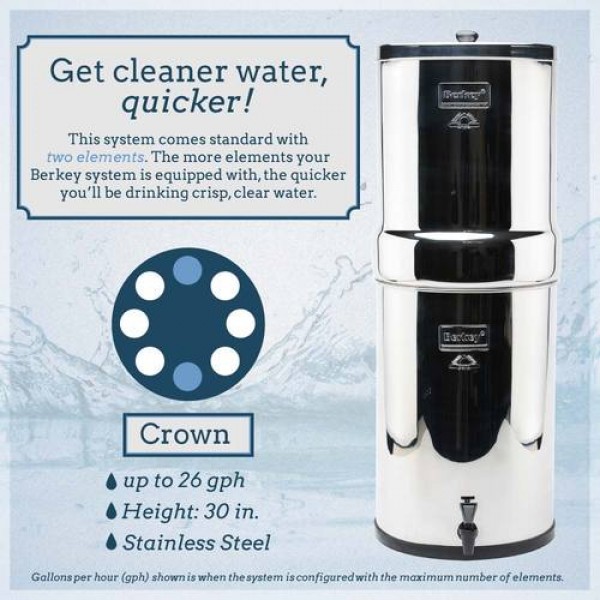

Crown Berkey 22L

5.0

  • $750.00
Product Description
  • The Crown Berkey™ System comes standard with two Black Berkey® Elements but can be expanded up to 4, 6, or 8 elements
  • The Crown Berkey™ System is our largest system and is ideal for large groups at home, churches, hospitals, etc,
  • Constructed of highly polished AISI 304 stainless steel
  • Storage capacity of about 6 gallons (22.7 liters)
  • Upper chamber nests within lower chamber for transport and stands only 20" in height
  • Maximum Filters: 8 Black Berkey® Elements (in upper chamber)
  • System includes upper and lower stainless steel chamber, 2 Black Berkey® Elements (expandable to 4, 6, or 8), 1 stainless steel lid, 1 spigot, 2 wingnuts, 2 washers, 1 priming button, 6 blocking plugs, 1 rubber gasket to protect the base
  • Height when in use: 30"
  • Diameter: 11"
  • Weight: 12 lbs empty
  • For normal everyday use, this system easily serves: 6-12 people
  • Fully configured, this system can serve up to 300-625 people a day, during an emergency
  • Maximum Filtration Flow Rate:
    • Configured with 2 Black Berkey® Elements, the Crown Berkey® System can filter up to 6.5 gallons (24.6 liters) of water per hour.

Flow rate calculated with upper chamber full to top. Flow rate decreases as water level declines.

Share

We will notify you when this product becomes available.

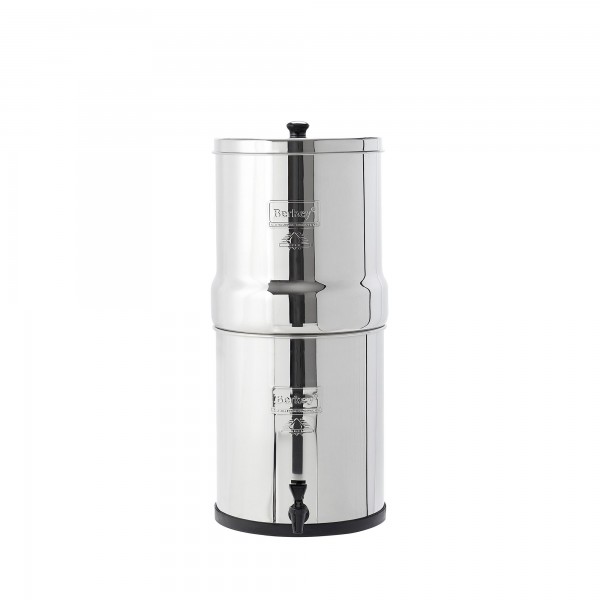

Big Berkey:

  • *The Berkey® stainless steel chambers are assembled in the USA from US and imported parts. The Black Berkey® Purification Elements are made and assembled in the USA.
    • The Big Berkey® System comes standard with 2 Black Berkey® Purification Elements, but can be expanded up to 4 elements
    • The versatile Big Berkey® System is ideal for small to medium families, and for use during travel, outdoor activities, or unexpected emergencies
    • Constructed of highly polished AISI 304 stainless steel
    • Storage capacity of about 2.25 gallons (8.5 liters)
    • Upper chamber nests within the lower chamber for transport and stands only 13″ in height
    • Maximum Filters: 4 Black Berkey® Purification Elements (in upper chamber)

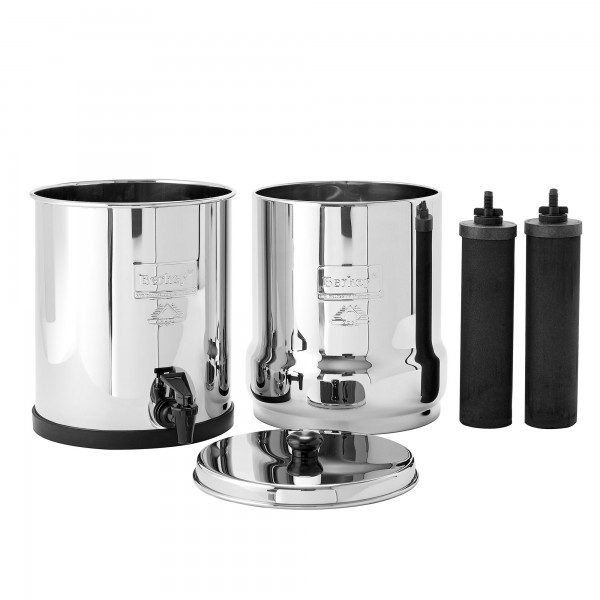

    • System includes upper and lower stainless steel chambers, 2 Black Berkey® Purification Elements (expandable up to 4), 1 stainless steel lid,1 spigot, rubber gasket to protect the base, 2 wingnuts, 2 washers, 1 priming button, and 2 blocking plugs
    • Height when in use: 19.25″
    • Diameter: 8.5″
    • Weight: 7 lbs empty
    • For normal everyday use, this system easily serves: 1-4 people
    • Fully configured, this system can serve up to 85-170 people a day, during an emergency
    • Maximum Filtration Flow Rate:
      • Configured with 2 Black Berkey® Purification Elements, the Big Berkey® System can produce up to 3.5 gallons (13.3 liters) per hour
      • Configured with 4 Black Berkey® Purification Elements, the Big Berkey® System can produce up to 7.0 gallons (26.5 liters) per hour
    • Up to 4 Berkey PF-2™ Fluoride and Arsenic Reduction Filters may be installed in the lower chamber of this system if desired

How to Prime and Install Black Berkey filter elements:
https://www.youtube.com/watch?v=r3tD1ku-HdA

How to install the spigot:
https://www.youtube.com/watch?v=pcbPYHbDoPk

Servicing of the Black Berkey filter elements:
https://www.youtube.com/watch?v=1w6IP2eeoWU

How to perform a Red Dye Test:
https://www.youtube.com/watch?v=CpyRzBa8UKk
